آون سری UF55 یونیورسال ممرت آون سری UF55 یونیورسال ممرت

آون سری UF55 یونیورسال ممرت

Universal oven UF55

مشخصات محصول

    افزودن به سبد خرید


    Working temperature rangeat least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
    Setting accuracy temperatureup to 99.9 °C: 0.1 / from 100 °C: 0.5
    Setting temperature range+20 to +300°C
    Temperature sensor1 Pt100 sensor DIN class A in 4-wire-circuit

    Stainless steel interior

    Interioreasy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
    Volume53 l

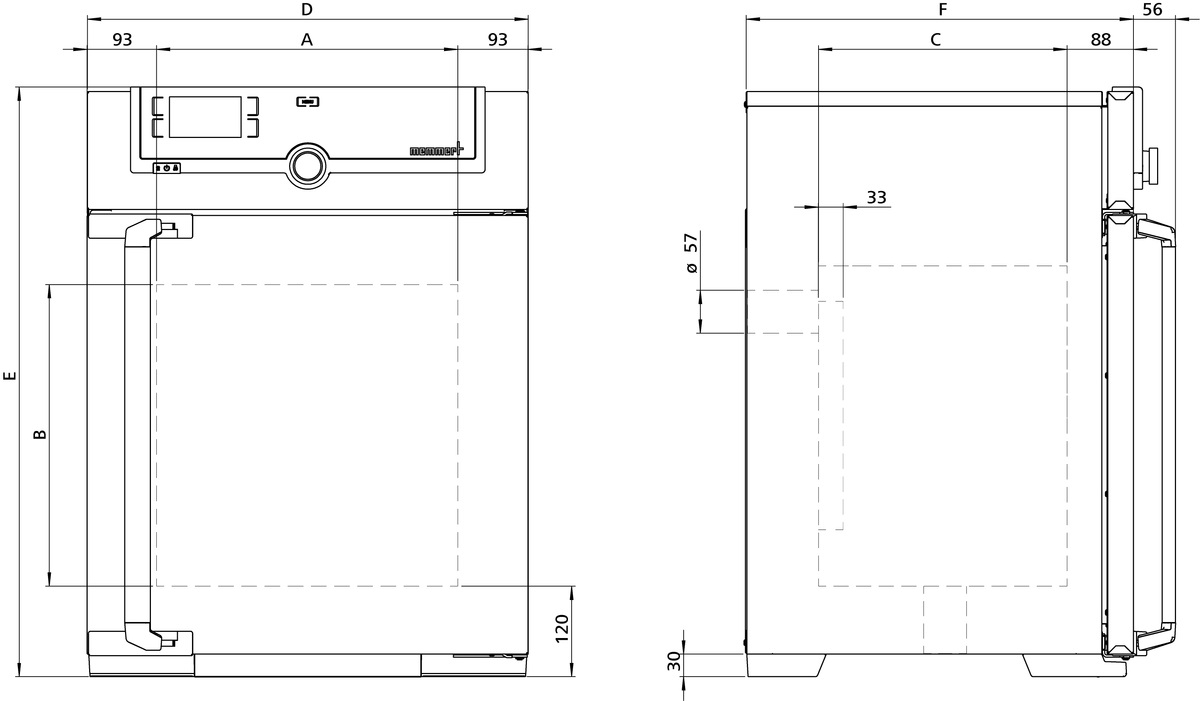

    Dimensionsw(A) x h(B) x d(C): 400 x 400 x 330 mm (d less 39 mm for fan)
    Max. number of internals4
    Max. loading of chamber80 kg
    Max. loading per internal20 kg

    Control technology

    Language settingGerman, English, Spanish, French, Polish, Czech, Hungarian
    ControlCOCKPITSingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
    TimerDigital backwards counter with target time setting, adjustable from 1 minute to 99 days
    Function SetpointWAITthe process time does not start until the set temperature is reached
    Calibrationthree freely selectable temperature values
    adjustable parameterstemperature (Celsius or Fahrenheit), fan speed, air flap position, programme time, time zones, summertime/wintertime

    Textured stainless steel casing

    Dimensionsw(D) x h(E) x d(F): 585 x 784 x 514 mm (d +56mm door handle)
    Housingrear zinc-plated steel

    Electrical data

    Voltage Electrical load230 V, 50/60 Hz -approx. 2000 W
    Voltage Electrical load115 V, 50/60 Hz - approx. 1700 W

    Ambient conditions

    Set UpThe distance between the wall and the rear of the appliance must be at least 15 cm. The clearance from the ceiling must not be less than 20 cm and the side clearance from walls or nearby appliances must not be less than 5 cm.
    Altitude of installationmax. 2,000 m above sea level
    Ambient temperature+5 °C to +40 °C
    Humidity rhmax. 80 %, non-condensing
    Overvoltage categoryII
    Pollution degree2


    Fanforced air circulation by quiet air turbine, adjustable in 10 % steps
    Fresh airAdmixture of pre-heated fresh air by electronically adjustable air flap
    Ventvent connection with restrictor flap


    Documentationprogramme stored in case of power failure
    ProgrammingAtmoCONTROL software for reading out, managing and organising the data logger via Ethernet interface (temporary trial version can be downloaded). USB stick with AtmoCONTROL software available as accessory (on demand).

    Packing/shipping data

    Transport informationThe appliances must be transported upright
    Customs tariff number8419 8998
    Country of originFederal Republic of Germany
    WEEE-Reg.-No.DE 66812464
    Dimensions approx incl. cartonw x h x d: 730 x 950 x 670 mm
    Net weightapprox. 57 kg
    Gross weight cartonapprox. 76 kg


    Temperature controladjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
    Autodiagnostic systemfor fault analysis

    Standard equipment

    Works calibration certificateCalibration at +160°C
    Doorfully insulated stainless steel door with 2-point locking (compression door lock)
    Internals1 stainless steel grid(s), electropolished

    آون آزمایشگاهی با کاربرد جهانی U دستگاه کلاسیک Memmert برای کنترل دما در علم، تحقیق و آزمایش مواد در صنعت است. شاهکار تکنولوژیکی کامل ساخته شده از فولاد ضد زنگ با کیفیت بالا، بهداشتی و تمیز کردن آسان، از نظر فن آوری تهویه و کنترل، محافظت در برابر دمای بیش از حد و فناوری گرمایش دقیق تنظیم شده چیزی را باقی نمی گذارد. برای مشاهده محصول  آون ديجيتال در سایت مرجع بر روی این لینک کلیک کنید.

    آون دیجیتالی آزمایشگاهی
